SKU: HWDHBLDS3MQR
Brand:Wiring Device-Kellems

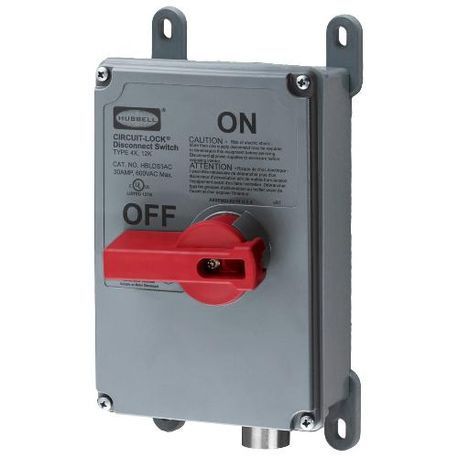

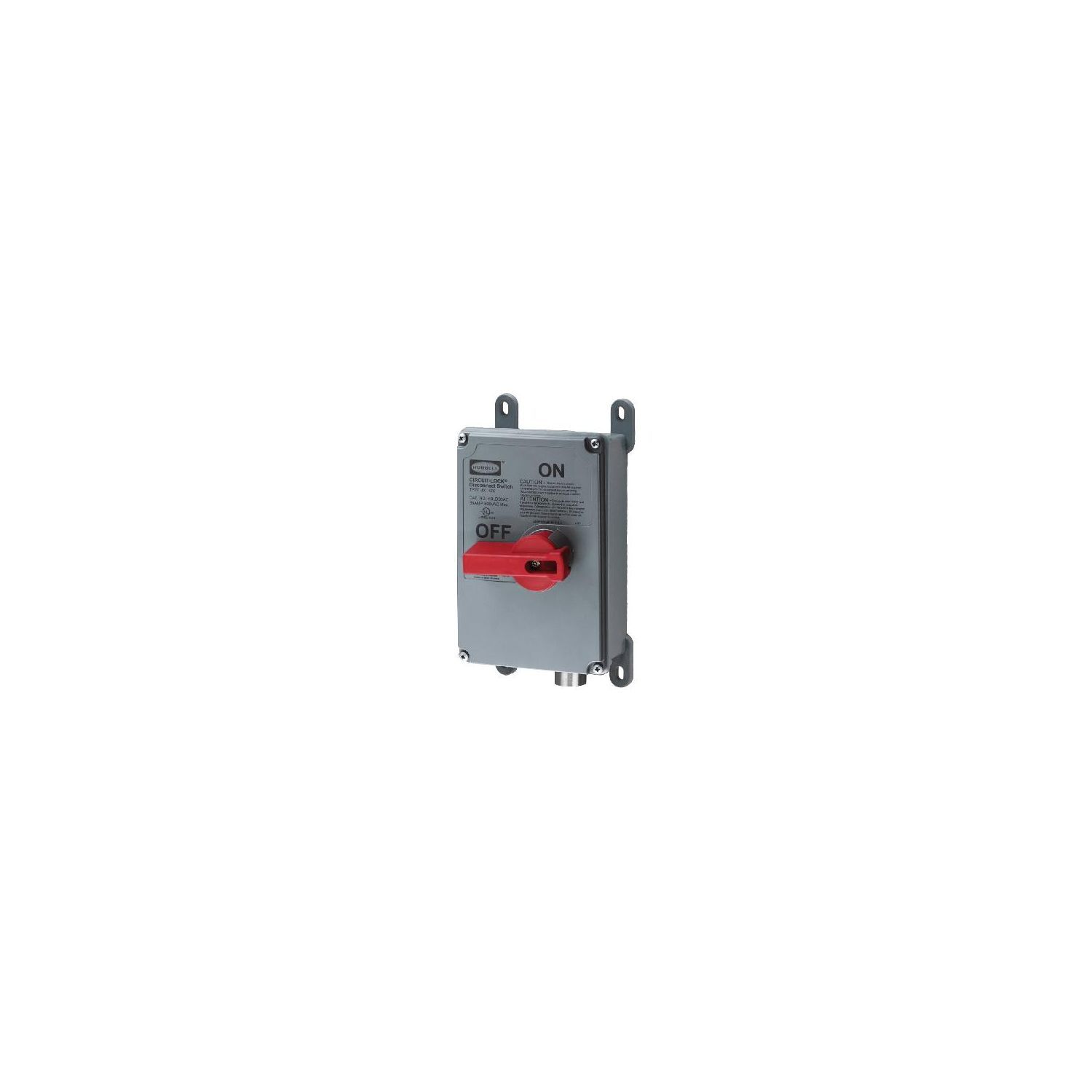

Wiring Device-Kellems Circuit-Lock® HBLDS3MQR Enclosed Labelless Non-Metallic Standard Unfused Disconnect Switch With LINKOSITY® (1) Pre-Wired Female Receptacle, 600 VAC, 30 A, 15 hp, 3 Pole

MotorQuick® combines the plug-and-play technology of Hubbell® LINKOSITY® power system with the versatility of Circuit-Lock® motor disconnect switches to drastically reduce the time it takes to replace motors. These quick disconnect switches feature lockable handles to meet OSHA lockout/tagout regulations and include pre-wired LINKOSITY® receptacles to meet a variety of application needs. The quick disconnect LINKOSITY® terminations, combined with the ability to conveniently pre-wire spare motors with a LINKOSITY® inlet without shutting down the entire line, reduces motor change-out time by more than 65%. The result is equipment up and running in a fraction of the time providing productivity and bottom-line savings.

Inventory

Your Warehouse: SMC E-Commerce

Product Overview

Amperage Rating: 30
Brand: Wiring Device-Kellems
Color: Gray
Dimensions: 8.5 in L x 6 in W x 4.12 in H
Enclosure Type: NEMA 4X/IP67
Horsepower: 15
Manufacturer: Hubbell
Mounting Type: Threaded
Name: Wiring Device-Kellems Circuit-Lock® HBLDS3MQR Enclosed Labelless Non-Metallic Standard Unfused Disconnect Switch With LINKOSITY® (1) Pre-Wired Female Receptacle, 600 VAC, 30 A, 15 hp, 3 Pole
Number of Poles: 3
Phase: 3
Product Type: Simple
Short Circuit Current Rating: 65
Temperature Rating: -40
Terminal Type: Pressure Screw
Type: Enclosed Labelless Non-Metallic Standard Unfused
Unit Of Measure: EA
UNSPSC: 39121521
Voltage Rating: 600
Weight: 2.95
