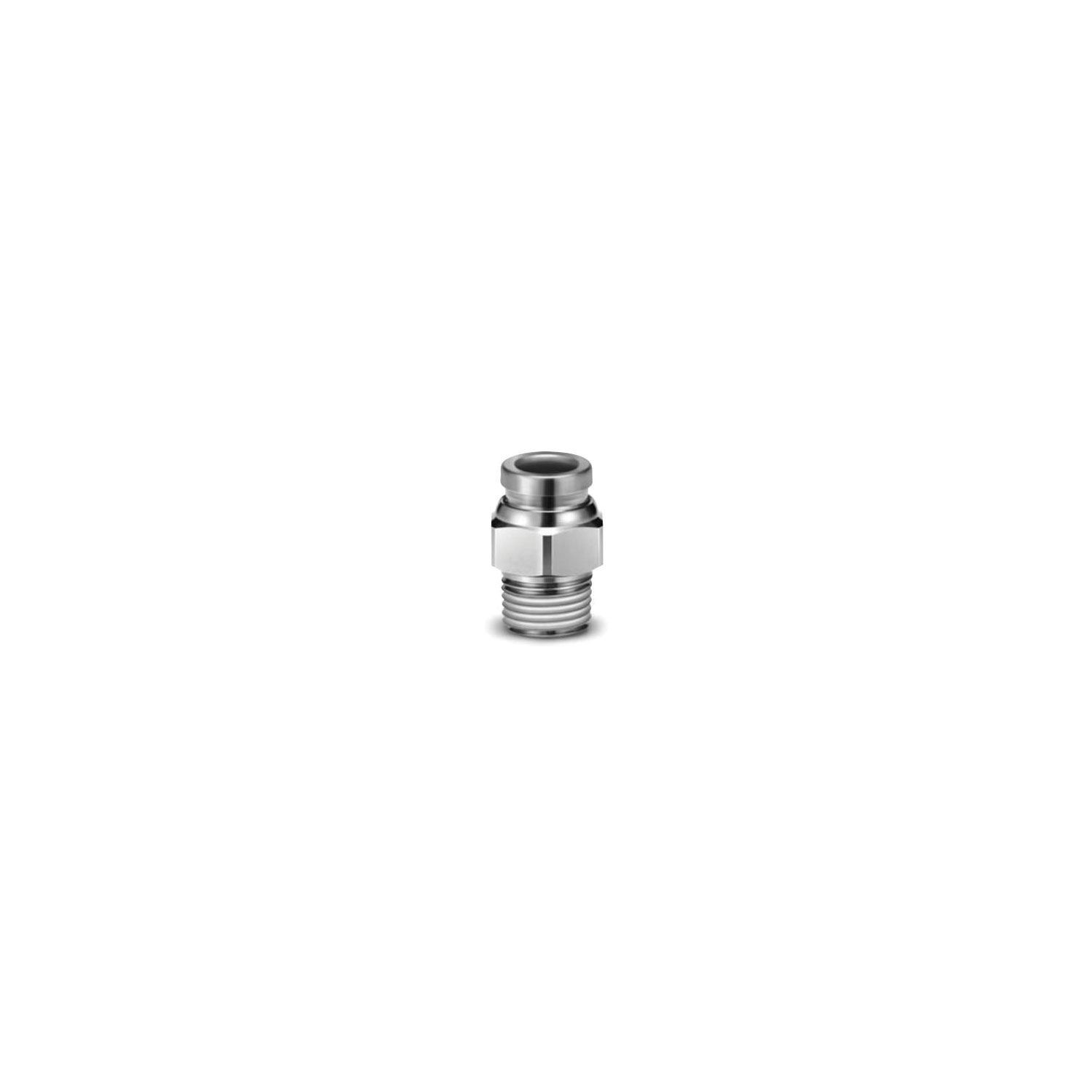

SMC® KQG2H06-M5 Male Connector With Sealant, Connector, 6 mm x RM5x0.8, Tube x R(PT) End Style, 316 Stainless Steel, Import Domestic/Import

Series KQG2 is a one-touch fitting made of all stainless steel SUS316, except seal parts. The series is suitable for use with steam and is grease-free. Applicable tubing includes FEP, PFA, nylon, soft nylon, polyurethane and polyolefin. The KQG2 series is available in both metric and inch sizes. The KQG2 is more compact and lightweight and offers more configuration variations and tube sizes than the KQG series.

$15.20(EA)

Inventory

Your Warehouse: SMC E-Commerce

Free Warehouse Pickup Out Of Stock
Delivery In Stock , Same Day Shipping Available

Manufacturers Inventory: 560

Manufacturers inventory subject to change. Shipped directly to distributor.

Qty

Product Overview

Product Specifications

Brand:	SMC^®
Dimensions:	11.1 mm Dia
Domestic/Import:	Import
End Style:	Tube x R(PT)
Fitting/Connector Type:	Connector
Hex Size:	6
Length:	19.1
Manufacturer:	SMC Corporation of America
Material:	316 Stainless Steel
Name:	SMC^® KQG2H06-M5 Male Connector With Sealant, Connector, 6 mm x RM5x0.8, Tube x R(PT) End Style, 316 Stainless Steel, Import Domestic/Import
Nominal Size:	6 mm x RM5x0.8
Pressure Rating:	-100 kPa to 1 MPa
Product Type:	Simple
Series:	KQG2
Temperature Rating:	-5 to 150
Unit Of Measure:	EA
UNSPSC:	27131600
Weight:	1.00

Documents

Catalog
