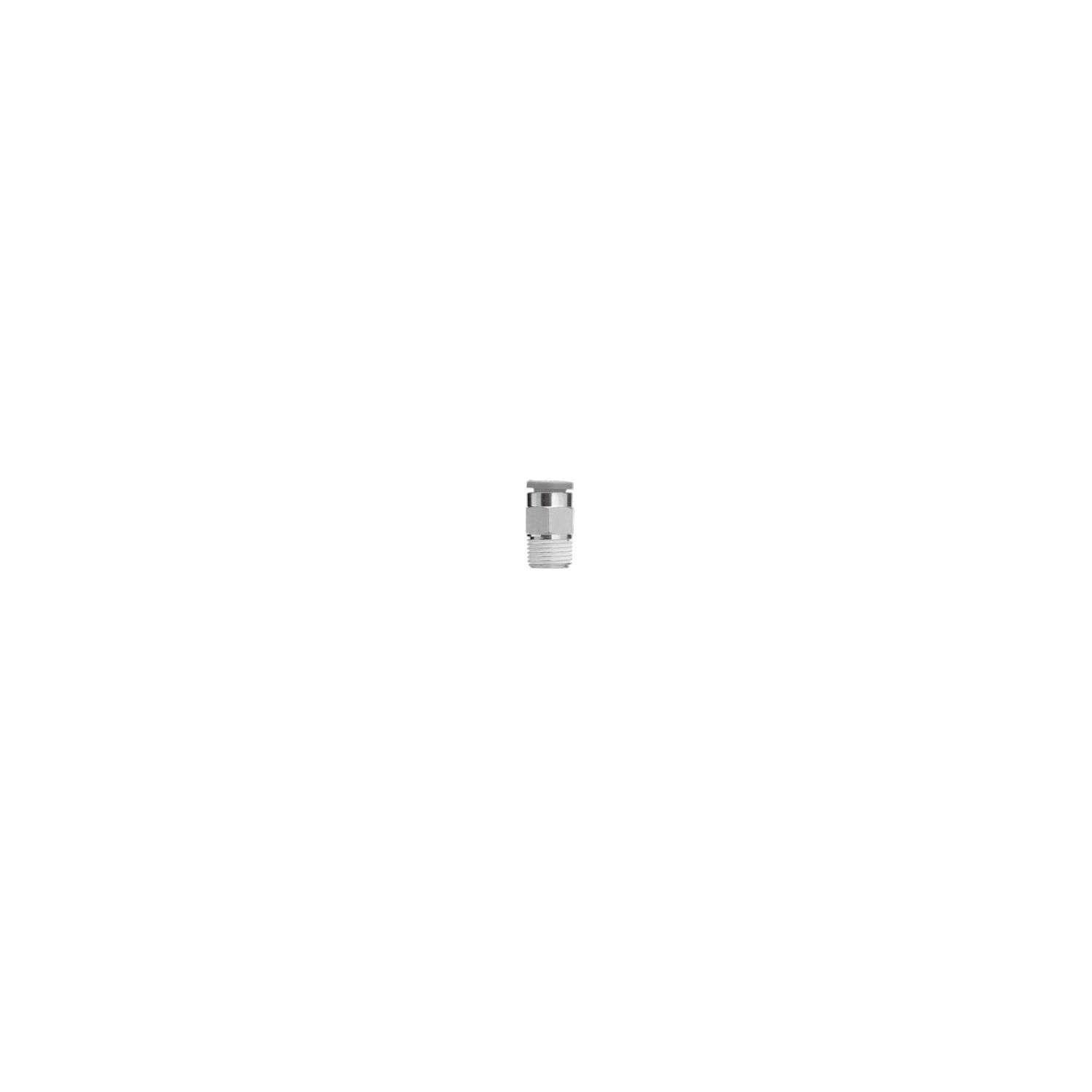

SMC® KQ2H07-34NS Male Connector With Sealant, Connector, 1/4 x 1/8 in, Tube x MNPT End Style, Brass, Import Domestic/Import

KQ2 one-touch, metric and inch size fittings are available in a wide variety of sizes, body styles and thread types. The use of a special profile seal allows the KQ2 to be used for a wide range of pressures from a low vacuum up to a pressure of 1 MPa. The KQ2 release collar releases both the chuck and collet to provide a low disconnection force for easy removal of the tubing.

$2.58(EA)

Inventory

Your Warehouse: SMC E-Commerce

Free Warehouse Pickup Out Of Stock
Delivery Out Of Stock

Expected Ship Date is September 3, 2025 - September 8, 2025

Due to market circumstances, the displayed lead time may not be accurate. Please contact your local branch for more information.

Manufacturers Inventory: 15339

Manufacturers inventory subject to change. Shipped directly to distributor.

Qty

Product Overview

Product Specifications

Brand:	SMC^®
Color:	Light Gray/White
Dimensions:	10.9 mm Dia
Domestic/Import:	Import
End Style:	Tube x MNPT
Finish:	Nickel Plated
Fitting/Connector Type:	Connector
Hex Size:	11.1
Industry Standards:	ANSI Approved, ASME1.20.1
Length:	18
Manufacturer:	SMC Corporation of America
Material:	Brass
Name:	SMC^® KQ2H07-34NS Male Connector With Sealant, Connector, 1/4 x 1/8 in, Tube x MNPT End Style, Brass, Import Domestic/Import
Nominal Size:	1/4 x 1/8
Pressure Rating:	-100 kPa to 1 MPa
Product Type:	Simple
Series:	KQ2
Temperature Rating:	-5 to 60
Unit Of Measure:	EA
UNSPSC:	27131600
Weight:	1.00
