SKU: SPNKQ2E0735
Brand:SMC®

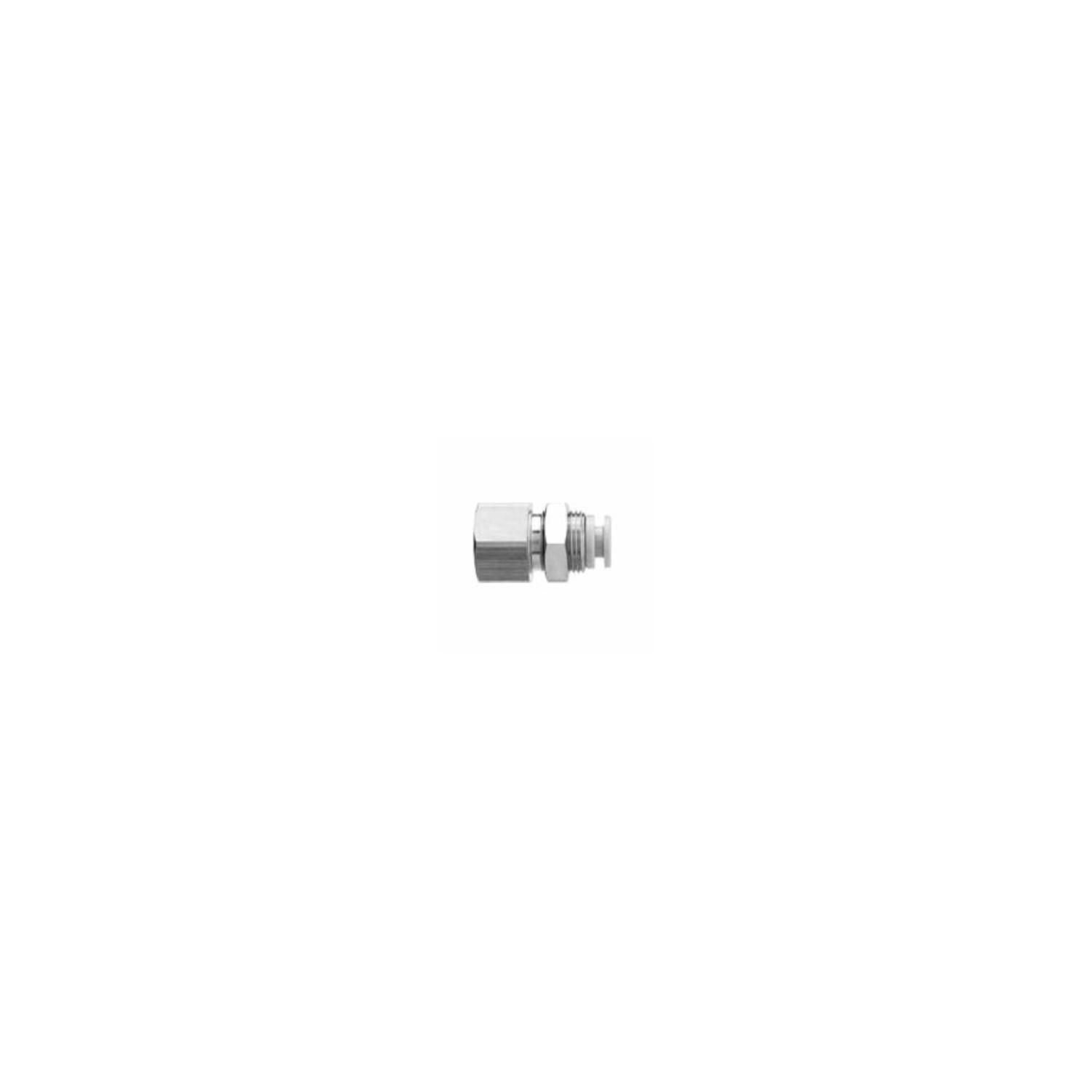

SMC® KQ2E07-35 One-Touch Bulkhead Connector, Connector, 1/4 in, Tube x NPT End Style, Brass

KQ2 one-touch, metric and inch size fittings are available in a wide variety of sizes, body styles and thread types. The specially designed packing provides positive sealing under pressure without the reduced flow common with compression fittings. The KQ2 release collar releases both the chuck and collet to provide a low disconnection force for easy removal of the tubing.
$640.04(EA)

Inventory

Your Warehouse: SMC E-Commerce
Expected Ship Date is August 5, 2025 - August 8, 2025
Due to market circumstances, the displayed lead time may not be accurate. Please contact your local branch for more information.

Product Overview

Brand: SMC®
Color: White
End Style: Tube x NPT
Fitting/Connector Type: Connector
Hex Size: 17.46
Length: 29.9
Manufacturer: SMC Corporation of America
Material: Brass
Name: SMC® KQ2E07-35 One-Touch Bulkhead Connector, Connector, 1/4 in, Tube x NPT End Style, Brass
Nominal Size: 1/4
Pressure Rating: -100 kPa to 1 MPa
Product Type: Simple
Series: KQ2
Temperature Rating: -5 to 60
Type: One-Touch
Unit Of Measure: EA
UNSPSC: 40141734
Weight: 1.00
