SKU: MMMMV1010FLX
Brand:Scotchlok™

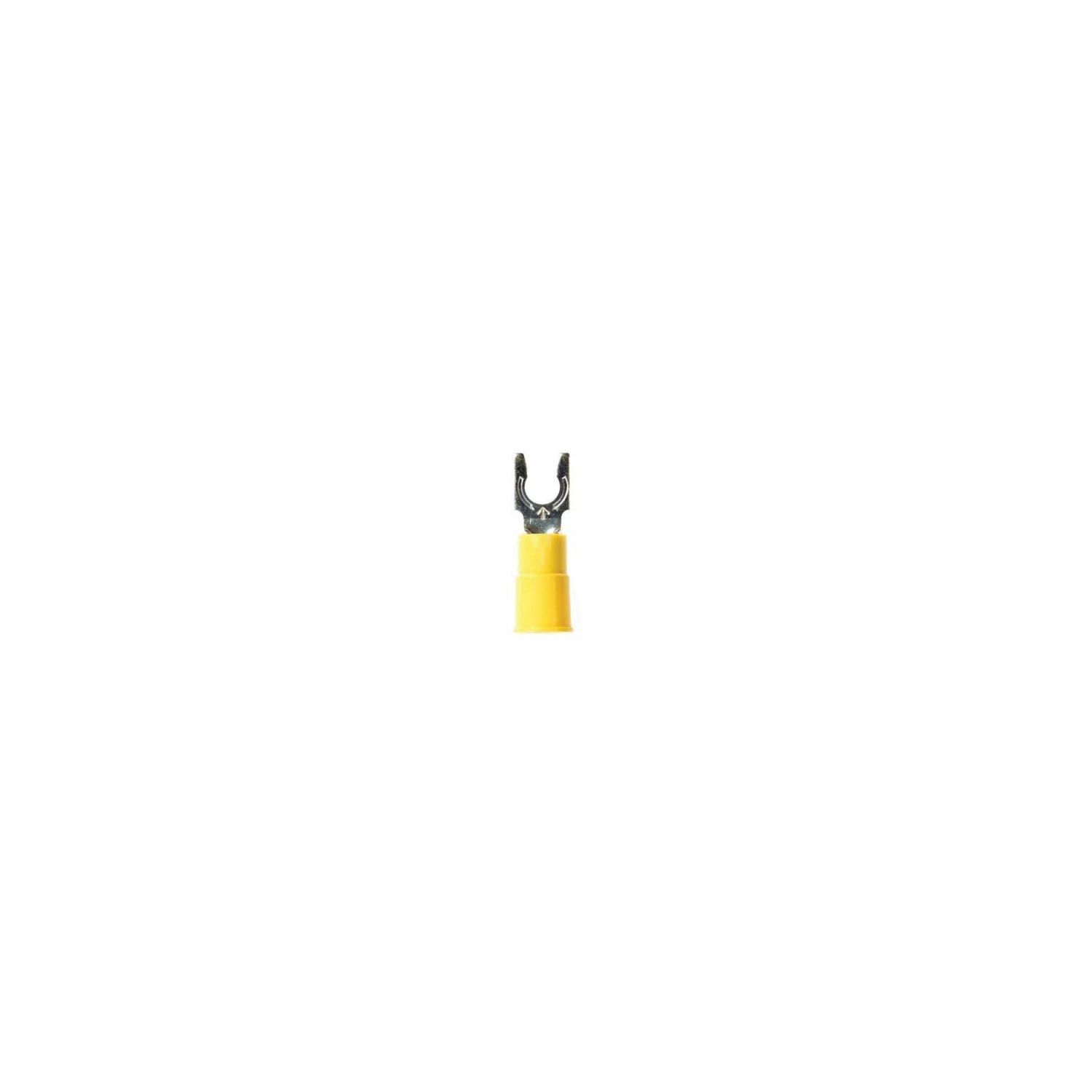

Scotchlok™ 051128-58830 Locking Fork Terminal, 12 to 10 AWG Conductor, 1.03 in L, Brazed Seam Barrel, Electrolytic Copper/Vinyl Insulated, Yellow

3M™ Scotchlok™ color coded locking fork is a lug connection terminal that has a spring like tongue to securely lock around the stud. The terminal has a vinyl insulated, brazed seam barrel and withstands temperatures of -40 to 221 deg F (-40 to 105 deg C). Electrolytic copper construction offers good conductivity and a tin plated finish resists corrosion. 3M™ Scotchlok™ locking fork terminal is color coded for quick and easy identification of the wire size required. It has a brazed seam barrel that is covered by a funnel designed, rigid molded, polyvinyl chloride sleeve to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The abrasion resistant, flared, vinyl sleeve insulation ensures easy crimping.
$50.16(PK 50 EA)

Inventory

Your Warehouse: SMC E-Commerce
Expected Ship Date is August 14, 2025 - August 18, 2025
Due to market circumstances, the displayed lead time may not be accurate. Please contact your local branch for more information.

Product Overview

Barrel Size: 0.135 in ID
Barrel Type: Brazed Seam
Brand: Scotchlok™
Color: Yellow
Conductor Size: 12 to 10
Finish: Tin Plated
Length: 1.03
Manufacturer: 3M
Material: Electrolytic Copper/Vinyl Insulated
Name: Scotchlok™ 051128-58830 Locking Fork Terminal, 12 to 10 AWG Conductor, 1.03 in L, Brazed Seam Barrel, Electrolytic Copper/Vinyl Insulated, Yellow
Product Type: Simple
Specifications: 0.36 in W Maximum Lock, 1/4 in Dia Maximum Insulation, 0.28 in Clearance, 0.04 in THK
Stud Size: #10
Temperature Rating: -40 to 105
Tongue Size: 0.32 in W
Tongue Type: Spring-Like
Type: Locking
Unit Of Measure: PK
UNSPSC: 39121432
Voltage Rating: 600
Weight: 3.60
