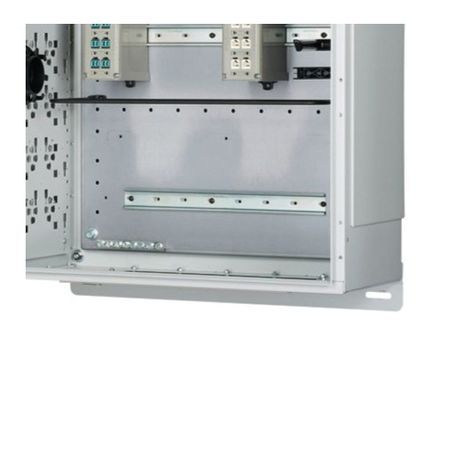

Panduit® Z22C-S 8-Port Pre-Configured Network Zone Wall Mount Enclosure, 24 in W x 11.6 in D, NEMA 4X, Mild Steel

The pre-configured network zone system shall be validated to accommodate one or two industrial switches with optional expansion modules and power supply for use in an EtherNet/IP zone architecture/topology. The enclosure shall be UL Type 4/12/4X and IP66 rated. A removable pre-engineered back plate with DIN rails installed shall be incorporated in the enclosure to enable rapid installation of switch, power supply and uninterruptible power supply (UPS). Pre-installed accessory side panels, fiber slack spool and L rings shall be included for cable management. The door shall be secured with 3 mm double bit or slotted latch drive feature. The door shall hinge on the right or left. Class 2 power circuits shall be pre-wired, labeled and tested. A barrier shall be present to isolate IT personnel from high voltage power circuit.
