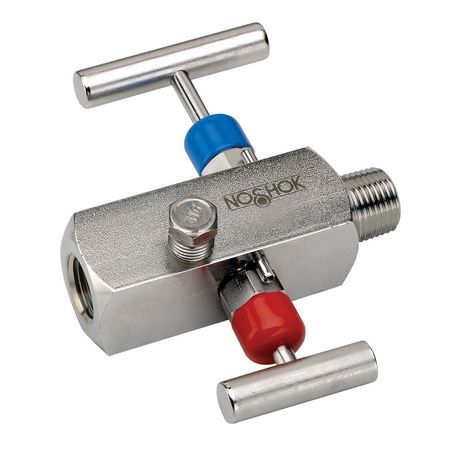

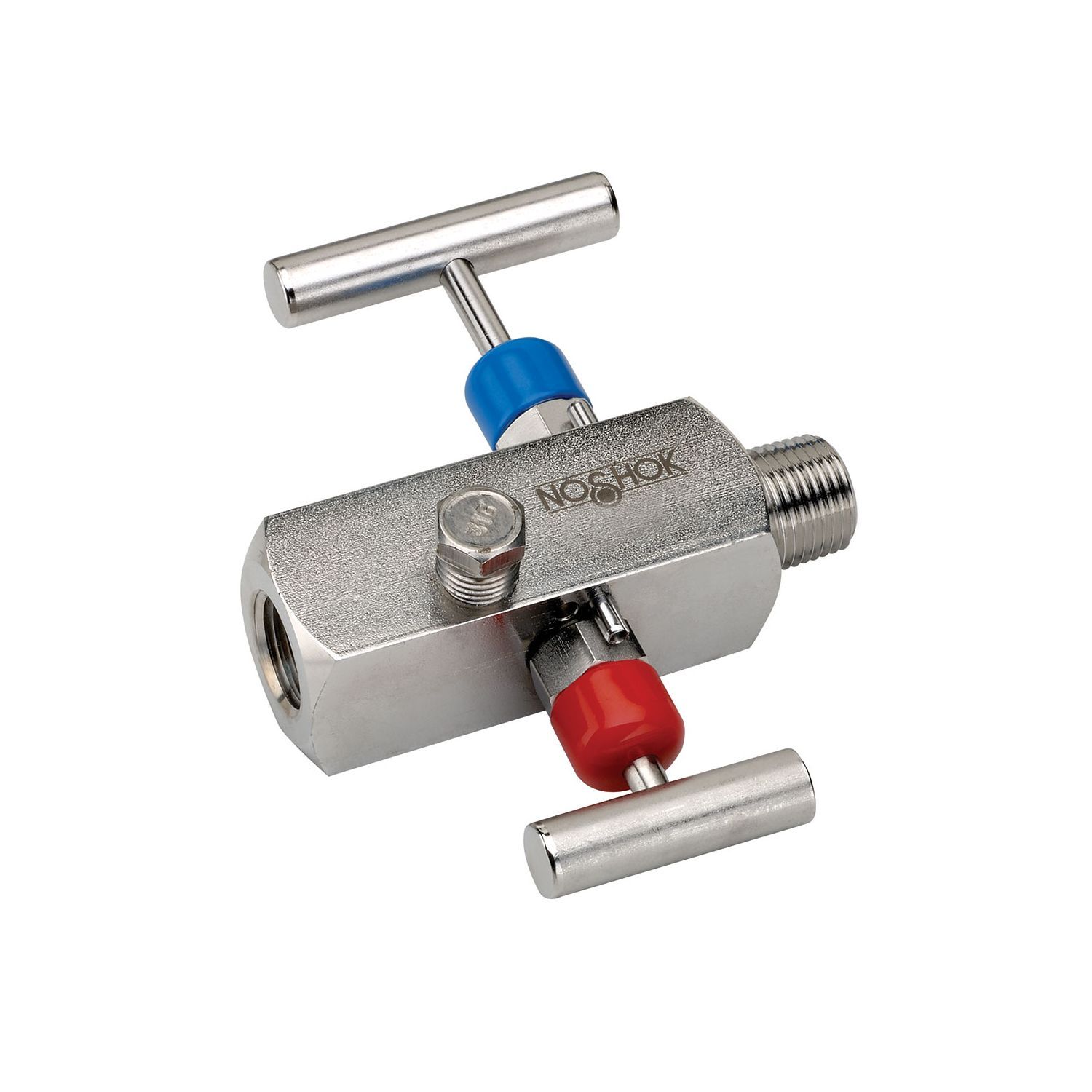

NOSHOK, Inc. 2170-MFC 1/2" National Pipe Thread (NPT), Male x Female, Steel, Soft Seat/Tip, 0.187" Orifice Block and Bleed 2-Valve
Back to Home
NOSHOK, Inc. 2170-MFC 1/2" National Pipe Thread (NPT), Male x Female, Steel, Soft Seat/Tip, 0.187" Orifice Block and Bleed 2-Valve
Choose a Catalog

NOSHOK, Inc. 2170-MFC 1/2" National Pipe Thread (NPT), Male x Female, Steel, Soft Seat/Tip, 0.187" Orifice Block and Bleed 2-Valve

SKU: NOS2170MFC
Brand:NOSHOK

NOSHOK, Inc. 2170-MFC 1/2" National Pipe Thread (NPT), Male x Female, Steel, Soft Seat/Tip, 0.187" Orifice Block and Bleed 2-Valve

Inventory

Your Warehouse: SMC E-Commerce

Product Overview

Body Material: Zinc-Nickel Plated Steel
Brand: NOSHOK
Connection Size: 1/2 in
Connection Type: National Pipe Thread (NPT)
Cv Coefficient: 0.76
Length: 5-3/8 in
Manufacturer: NOSHOK
Name: NOSHOK, Inc. 2170-MFC 1/2" National Pipe Thread (NPT), Male x Female, Steel, Soft Seat/Tip, 0.187" Orifice Block and Bleed 2-Valve
Orifice Size: 0.187 in
Pressure Rating: 6,000 psi at 200 Degree Fahrenheit (ºF) Temperature
Process Type: 2-Valve Block and Bleed
Product Type: Simple
Seat: Soft Seat
Series: 2170
Stem Seal and Type: All 316 Stainless Steel stems with Fluorocarbon (FKM) o-ring and Polytetrafluoroethylene (PTFE) back-up ring below the threads, Polytetrafluoroethylene (PTFE) packing optional
Type: Needle Valve
Unit Of Measure: EA
Valve Material: Steel
Valve Type: Male-Female
Warranty: 3 yrs
Weight: 2.00
