SKU: HWDHBL2510ST
Brand:Hubbell

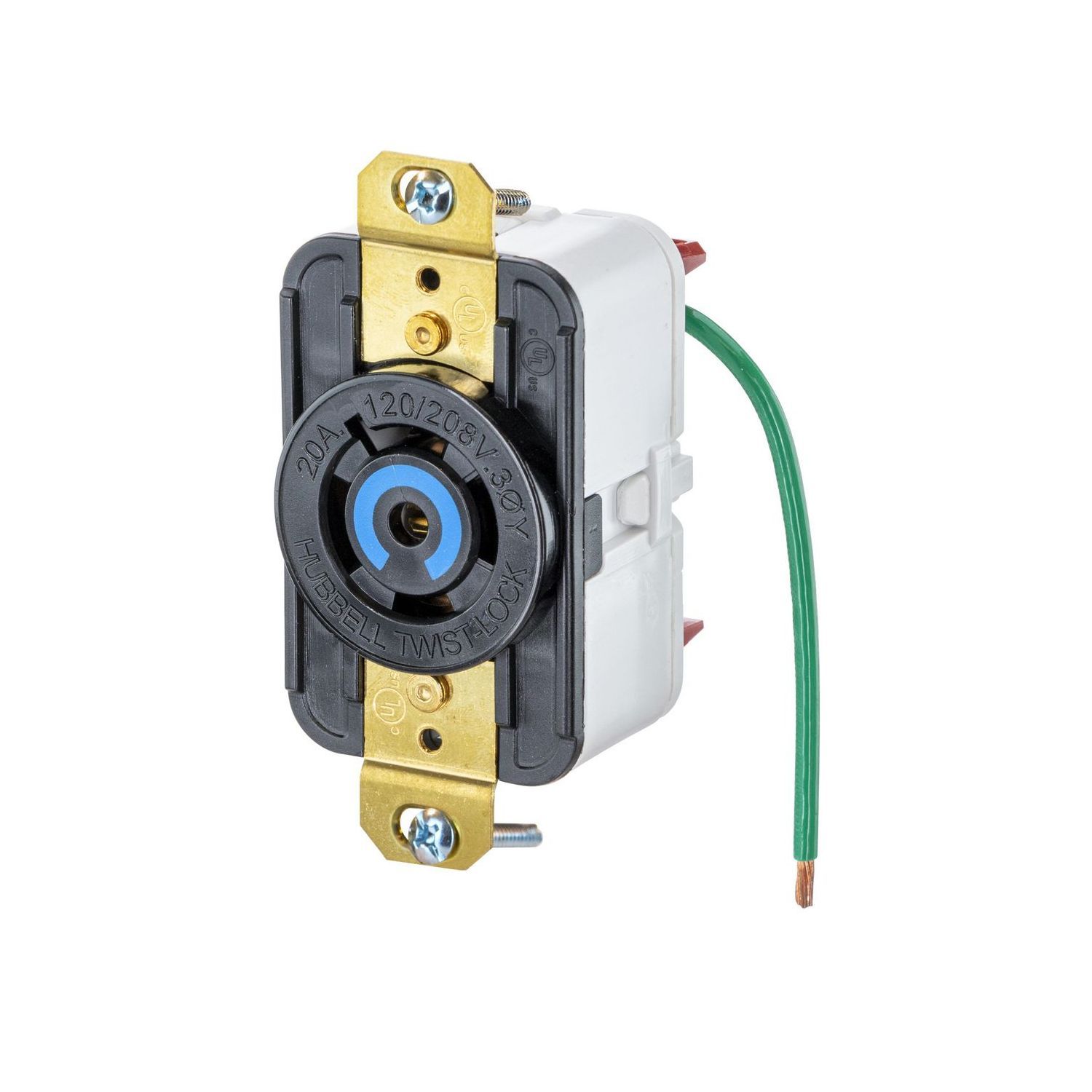

Wiring Device-Kellems HBL2510ST - Twist-Lock® Edge Receptacle with Spring Termination, 20A, 3PH 120/208V, L21-20R, Black, Single Receptacle, 4 Poles, 5 Wires, Screwless Termination

$0.00

Inventory

Your Warehouse: SMC E-Commerce

Product Overview

Amperage Rating: 20 A
Brand: Hubbell
Color: Black
Dielectric Strength: Withstands 2,000V minimum
Dimensions: 3.28 in x 1.7 in x 1.468 in
Grade: Industrial
Manufacturer: Wiring Device-Kellems
Material: Nylon, Brass, Steel
Mounting Type: Screw Mount
Name: Wiring Device-Kellems HBL2510ST - Twist-Lock® Edge Receptacle with Spring Termination, 20A, 3PH 120/208V, L21-20R, Black, Single Receptacle, 4 Poles, 5 Wires, Screwless Termination
NEMA Rating: L21-20R
Number of Poles: 4
Number of Wires: 5
Phase: 3-Phase Y
Product Type: Simple
Series: Twist-Lock® Edge
Temperature Rating: Maximum Continuous 75°C; Minimum -40°C (w/o impact)
Type: Single Receptacle
Unit Of Measure: EA
Voltage Rating: 3-Phase Y 120/208 V
Weight: 1.00
Wire Size: 14 AWG - 10 AWG solid, 14 AWG - 8 AWG stranded (including compact stranded)
