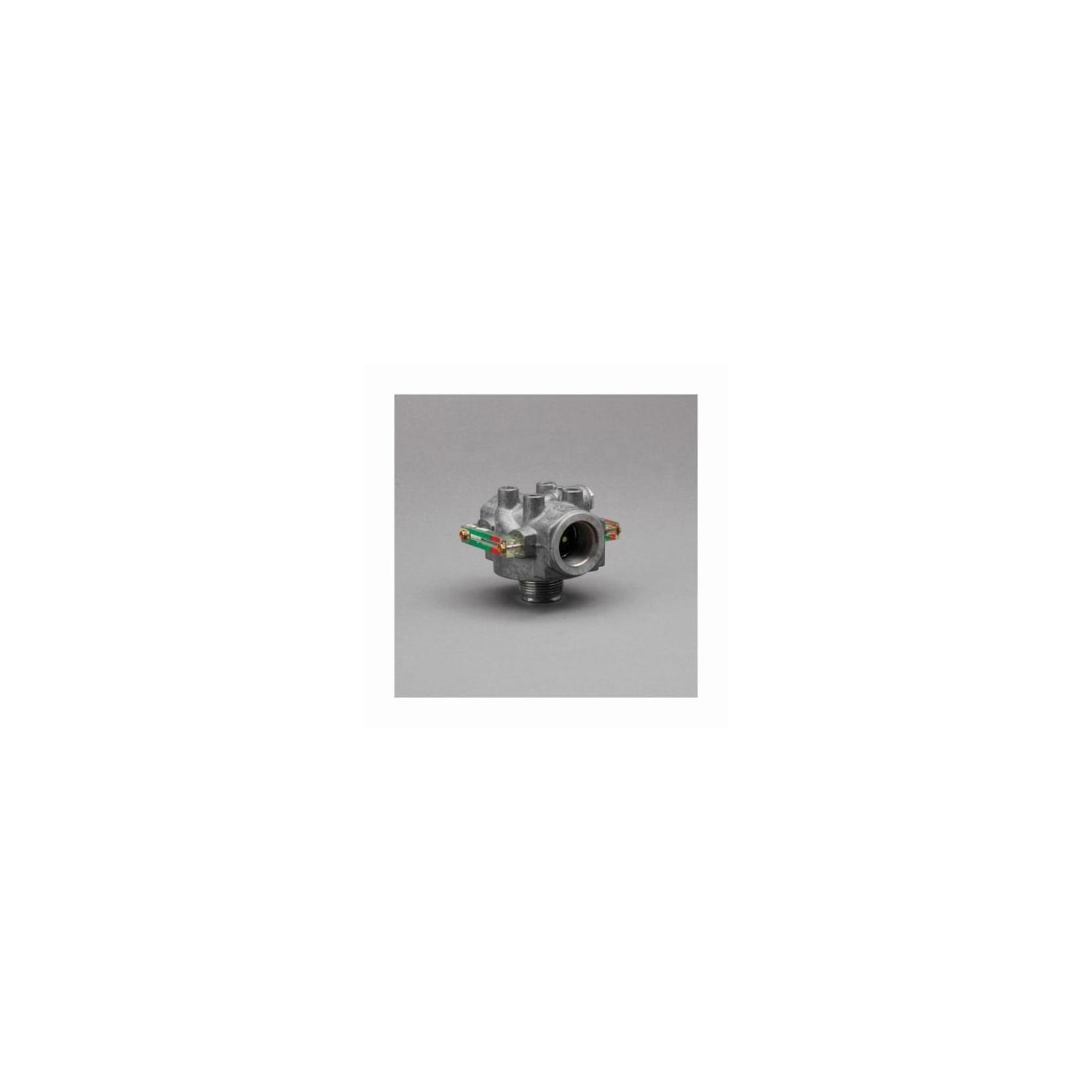

Donaldson® Duramax® P564850 Single Head Assembly With 4 psi Bypass Valve and O-Ring, 35 gpm, 500 psi, SAE-16 Port, For Use With HMK04/24 Spin-On Filter, Die-Cast Aluminum
Choose a Catalog

Donaldson® Duramax® P564850 Single Head Assembly With 4 psi Bypass Valve and O-Ring, 35 gpm, 500 psi, SAE-16 Port, For Use With HMK04/24 Spin-On Filter, Die-Cast Aluminum

SKU: DONP564850
Brand:Donaldson®

Donaldson® Duramax® P564850 Single Head Assembly With 4 psi Bypass Valve and O-Ring, 35 gpm, 500 psi, SAE-16 Port, For Use With HMK04/24 Spin-On Filter, Die-Cast Aluminum

Inventory

Product Overview

Brand: Donaldson®
Dimensions: 4.02 in L x 3.39 in H
Flow Rate: 35 gpm
Manufacturer: Donaldson Company
Material: Die-Cast Aluminum
Name: Donaldson® Duramax® P564850 Single Head Assembly With 4 psi Bypass Valve and O-Ring, 35 gpm, 500 psi, SAE-16 Port, For Use With HMK04/24 Spin-On Filter, Die-Cast Aluminum
Port Size: SAE-16
Pressure Rating: 500 psi
Product Type: Simple
Suitable For Use With: HMK04/24 Spin-On Filter
Temperature Rating: -20 to 250 deg F
Thread Size: 1-3/8-12 UN
Type: Single
Unit Of Measure: EA
UNSPSC: 40161515
Weight: 1.55
