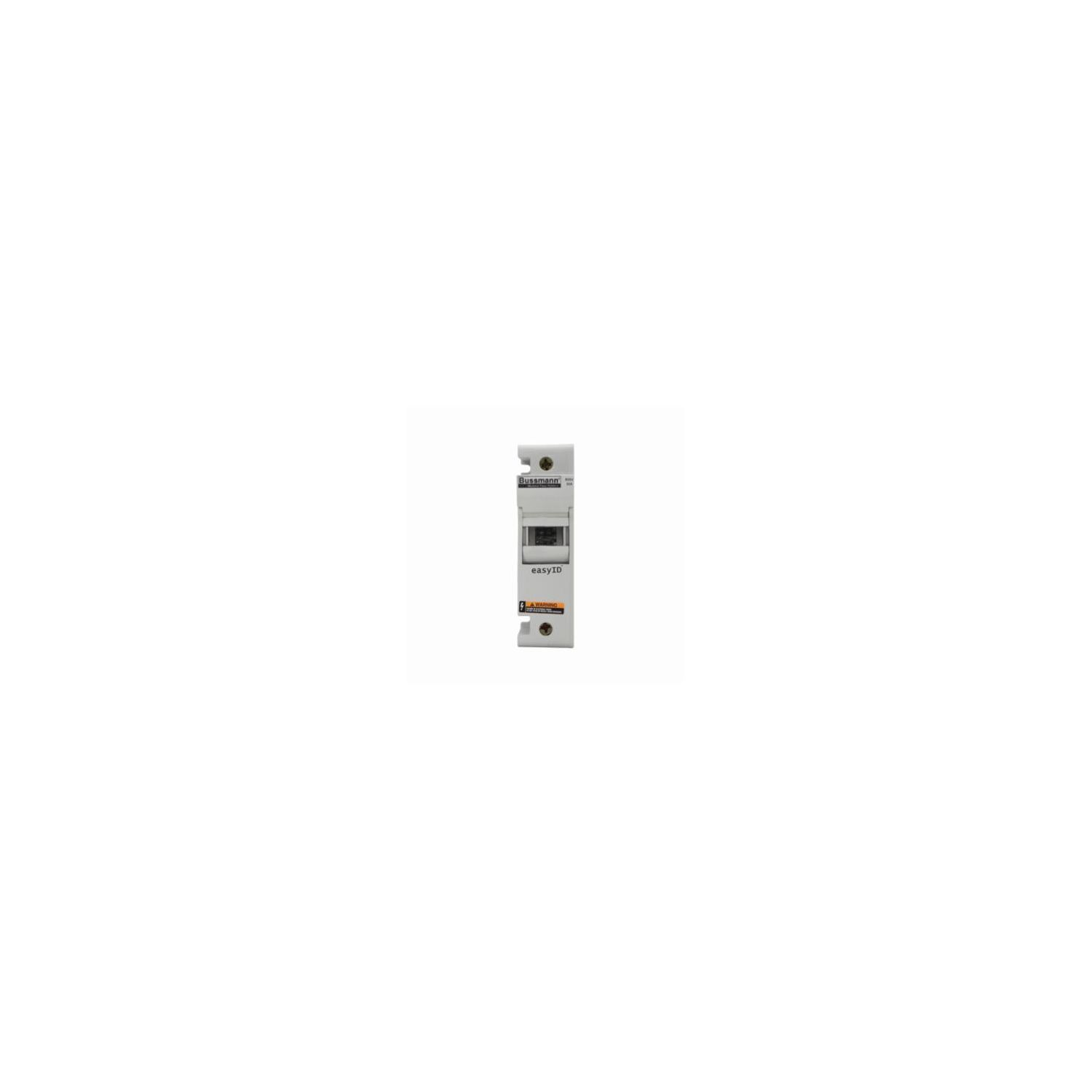

Bussmann easyID™ CH30J1I CH Series Finger Safe Modular Fuse Holder, 600 VAC/VDC, 30 A, Class: J, 18 to 1 AWG Wire

$369.32(EA)

Inventory

Your Warehouse: SMC E-Commerce

Expected Ship Date is September 3, 2025 - September 8, 2025

Due to market circumstances, the displayed lead time may not be accurate. Please contact your local branch for more information.

Qty

Amperage Rating:	30
Brand:	Bussmann
Class:	J
Color:	White
Connection Type:	Box Lug
Dimensions:	1.28 in L x 2.83 in W x 4.59 in H
Fuse Diameter:	0.81
Fuse Length:	2-1/4
Manufacturer:	Eaton
Material:	Thermoplastic
Mounting Type:	DIN Rail/Panel
Name:	Bussmann easyID™ CH30J1I CH Series Finger Safe Modular Fuse Holder, 600 VAC/VDC, 30 A, Class: J, 18 to 1 AWG Wire
Number of Phases:	3
Number of Poles:	1
Product Type:	Simple
Series:	CH Series
Suitable For Use With:	LPJ Series Time Delay, JKS Series Fast Acting, DFJ Series High Speed Class J Fuse
Temperature Rating:	85
Type:	Finger Safe Modular
Unit Of Measure:	EA
UNSPSC:	39121624
Voltage Rating:	600
Weight:	1.00
Wire Size:	18 to 1
