SKU: BUS160233
Brand:Bussmann

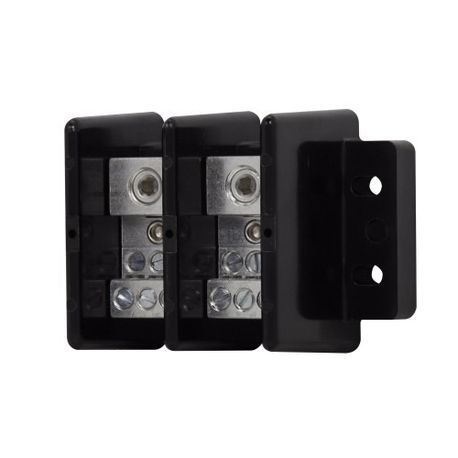

Bussmann Magnum® 16023-3 Barrier Standard Power Terminal Block, 600 VAC/VDC, 310 A, 3 Pole, 6 AWG to 350 kcmil Wire, Thermoplastic

Bussmann series UL Recognized power distribution blocks offer a variety of lineside and loadside port configurations to provide greater flexibility in panel wiring and wire management. These blocks are UL Recognized to UL 1059 and rated for use in UL 508A industrial control panels. Blocks are factory configured in 1-, 2 and 3-pole versions, and have optional covers to enhance safety (order covers separately).
$0.00

Inventory

Your Warehouse: SMC E-Commerce

Product Overview

Amperage Rating: 310
Brand: Bussmann
Color: Black
Dimensions: 5.37 in L x 2.8 in W x 2.12 in H
Finish: Tin Plated
Manufacturer: Eaton
Material: Thermoplastic
Name: Bussmann Magnum® 16023-3 Barrier Standard Power Terminal Block, 600 VAC/VDC, 310 A, 3 Pole, 6 AWG to 350 kcmil Wire, Thermoplastic
Number of Poles: 3
Primary Connections/Pole: 1
Product Type: Simple
Secondary Connection/Pole: 6
Series: 160
Short Circuit Current Rating: 10
Type: Barrier Standard
Unit Of Measure: EA
UNSPSC: 39121410
Voltage Rating: 600
Weight: 0.90
Wire Size: 6 AWG to 350 kcmil
